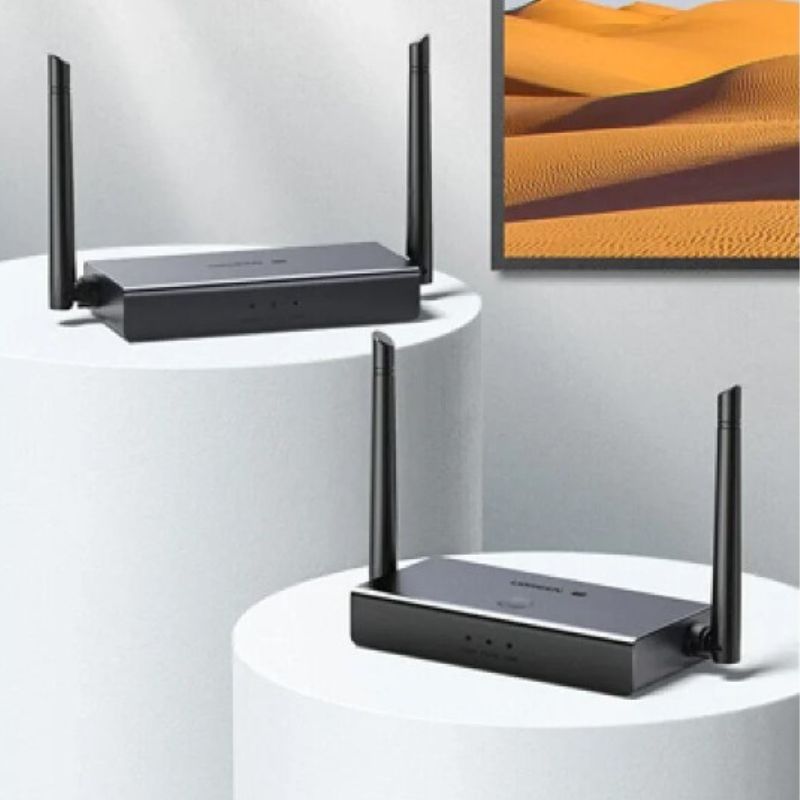

Allows wireless transmission of an HDMI signal from a source device to a display device up to 200 metres in open space.
Supports standard resolutions including 1080p at 60 Hz (and lower like 720p/576p) over the wireless link.
Fully compatible with HDMI + HDCP (so protected content should pass).
Built-in IR-remote control pass-through: you can place an IR blaster at the source side and control the source from the display side.
No cable required between transmitter (TX) and receiver (RX) for the HDMI link (apart from power and the HDMI input/output).
Metal enclosure, designed industrially for better shielding and robustness.
Operating temperature range of 0 °C to 60 °C.
Power supply: DC 5 V @ 3 A per unit (TX and RX) in many implementations.
অস্থির শীল বাজার ব্যবস্থার কারণে,
***অর্ডার করার পূর্বে পন্যের স্টক, দাম সংক্রান্ত ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
***ঢাকার বাহিরে ডেলিভারির জন্য অগ্রিম ২০০ টাকা (bKash/Nagad- 01729525052) এই নম্বর এ সেন্ডমানি করে ফেসবুকে অর্ডার নম্বর সহ স্ক্রিনশট দিন।
***প্রোডাক্টের অবশিষ্ট টাকা আপনি ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন।
HDMI signal & HDCP support: Fully compatible with HDMI including HDCP.
Supported resolutions:
480i@60Hz, 480p@60Hz
576i@50Hz, 576p@50Hz
720p@50/60Hz
1080i@50/60Hz
1080p@50/60Hz
(Note: Doesn’t list 4K support in this spec sheet.)
Maximum transmission distance: Up to 200 m in open-line-of-sight conditions for 1080p@60Hz.
Working temperature: 0 °C to 60 °C.
Power supply: DC 5 V / 3 A for each unit (TX and RX) according to spec sheet.
Power consumption:
TX: approx. 8.5 W
RX: approx. 5.5 W
Enclosure material & size: Metal enclosure; product dimensions ~ 7.7″ × 5.4″ × 1.2″ (≈ 195 mm × 137 mm × 30 mm)
Other features:
TX and RX both have indicator LEDs (power, connection status) and reset buttons.
Connection instructions note that walls/obstructions will reduce distance and quality.
