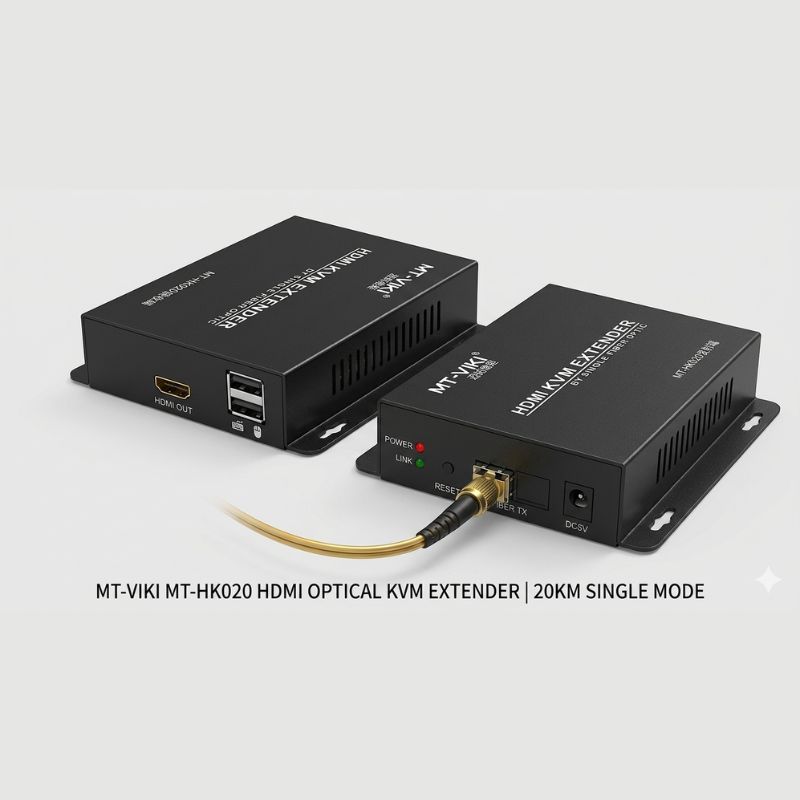

MT-VIKI MT-HK020 HDMI Optical KVM Extender - 20KM

Key Specifications

• Model: MT-HK020

• Type: HDMI Optical Fiber KVM Extender

• Transmission Distance: Up to 20KM (single-mode fiber)

• Video Resolution: Up to 1920×1080 @ 60Hz (Full HD)

• Bandwidth: 2.25 Gbpdecc

• Fiber Port: SC (single-mode)

• HDMI Ports:

  • TX: 1× HDMI input

  • RX: 1× HDMI output

• USB (KVM Control):

  • TX: USB ports for keyboard/mouse

  • RX: USB-B port for host connection

• IR Support: Yes

• Power Supply: DC 5V

• Power Consumption: TX 5W / RX 5W

• Housing: Metal casing (better shielding & heat dissipation)

• Wavelength: 1310 nm

• Fiber Type: Single-mode

• Link Loss: ≤14 dB

• Receiving Sensitivity: ≥-32 dBm

• Return Loss: 15 dB

• Uncompressed digital fiber transmission (no delay)

• Supports keyboard & mouse control over long distance (KVM)

• Plug & play, auto display mode detection

• Stable long-distance transmission with low interference

• Continuous 24/7 operation capability

• CCTV / security monitoring

• Control rooms

• Industrial systems

• Conference & AV setups
