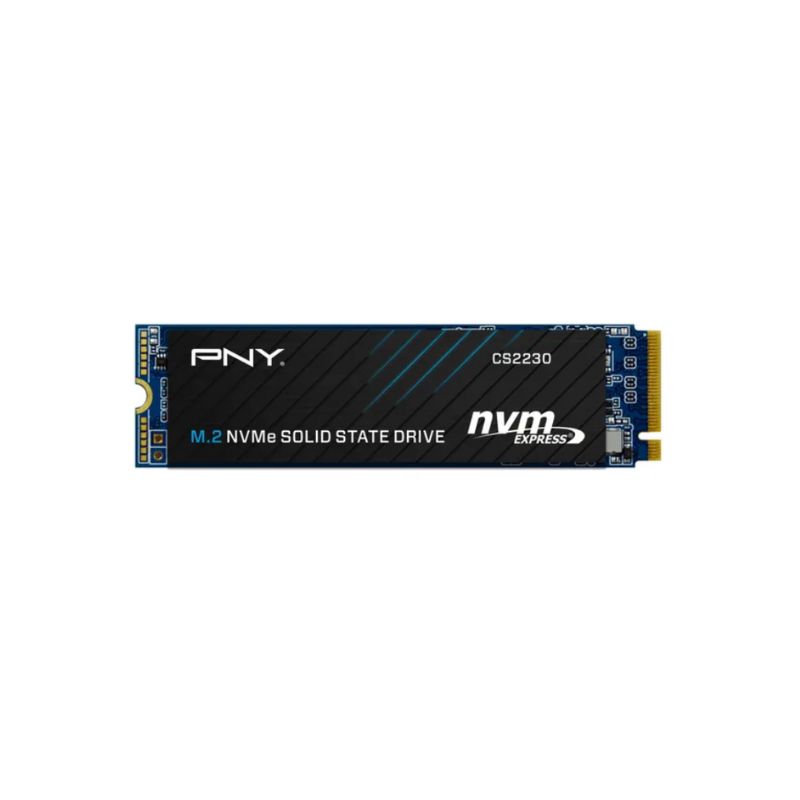

Form Factor: M.2 2280
Interface: PCIe Gen 3.0 x4, NVMe 1.3 protocol
Capacity: 500 GB
Performance:
Sequential Read Speed: Up to around 1900-2100 MB/s (varies by model/review)
Sequential Write Speed: Up to around 1200-1500 MB/s
NAND Flash Type: 3D NAND technology for improved endurance and reliability
Controller: Custom PNY controller optimized for performance and efficiency
Use Case: Ideal for upgrading laptops and desktops for faster boot times, application loading, and file transfers
Reliability: Good endurance rating with features like ECC (Error Correction Code), wear leveling, and TRIM support
Power Consumption: Low power consumption suitable for portable devices
Key Specifications
Form Factor: M.2 2280 (80mm x 22mm)
Interface: PCIe Gen3 x4, NVMe 1.4
NAND Type: 3D NAND Flash
Capacity: 500GB
Sequential Read Speed: Up to 3,300 MB/s
Sequential Write Speed: Up to 2,500 MB/s
Endurance: 3-Year Limited Warranty or TBW (Total Bytes Written)
MTBF (Mean Time Between Failures): 1,500,000 hours
Error Correction: LDPC (Low-Density Parity-Check) ECC
Data Protection: End-to-End Data Path Protection, S.M.A.R.T. Monitoring
Power Management: Supports PCIe power states PS0–PS4, APST, ASPM, L1.2
TRIM Support: Yes (requires OS support)
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Operating Systems: Compatible with Windows, macOS, and Linux
RAID Support: RAID 0 and 1
