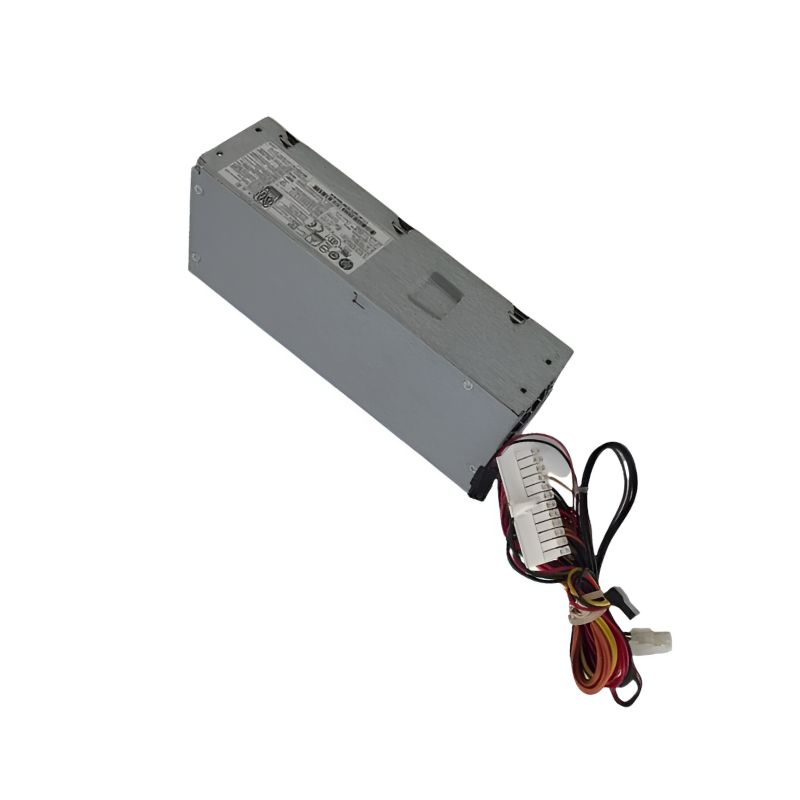

HP PS-4181-7 ( 124PIN-4PIN ) Power Supply 180W
Key Features of HP PS-4181-7 (124PIN-4PIN) Power Supply:
Power Output
-
Total Power Output: 180 Watts (Max)
-
Designed for low-power desktops or small form factor (SFF) systems
Connectors
-
124-Pin Main Connector (proprietary HP connector, not standard ATX)
-
4-Pin Power Connector (possibly for CPU or additional device power)
-
May also include SATA/Molex for drives (depending on model revision)
Form Factor
-
Compact/SFF Form Factor
-
Typically used in HP Slimline or ultra-small desktops
Input Voltage
-
100V–240V AC, auto-switching (typical for worldwide compatibility)
Cooling
-
Built-in internal fan
-
Thermally controlled fan operation for quiet performance
Efficiency
-
May comply with 80 PLUS standard in some revisions (though not always labeled)
Protections
-
Over-voltage protection (OVP)
-
Over-current protection (OCP)
-
Short-circuit protection (SCP)
Compatibility
-
Not ATX-compatible due to proprietary connector
-
Specifically designed for certain HP OEM systems (e.g., HP Pavilion Slimline, Compaq Presario, etc.)
-
Always check system model before replacement
প্রোডাক্টের স্টক বা দামের বিষয়ে যেকোনো তথ্য জানতে আমাদেরকে কল করুন 01729525052 অথবা মেসেজ করুন।
Inhouse product
-
Ulanzi A100 Wireless Lavalier Microphone
৳2,999.00 -
Casio FX-991EX Scientific Calculator
৳8,290.00 -
Ulanzi J12 Dual Wireless Microphone
৳2,890.00
Basic Specs
-
Model Numbers: PS‑4181‑7 (also DPS‑180AB‑20 A, PCE019)
-
HP Part / Spare Numbers: 848050-201, 848050‑003, 787009‑001, 793073‑001, 797009‑001
-
Manufacturer: Lite‑On Technology Corp (built for HP)
-
Max Output Power: 180 W
Connector Layout
-
24‑pin ATX main power connector for motherboard
-
4‑pin +12 V CPU power connector (mini‑CPU plug)
-
SATA power connector (standard)
-
Micro‑SATA connector for optical drives or small 2.5″ devices
Output Rail Currents
Typical DC outputs:
-
+12 V — ~15 A
-
+5 V — ~10 A
-
+3.3 V — ~7 A
-
+5 VSB (standby) — ~1.5 A
AC Input & Efficiency
-
Input Voltage: 100–240 VAC, 50–60 Hz, ~3.6 A
-
Efficiency Rating: 80 PLUS Bronze (E‑Star Bronze standard)
Physical Dimensions
-
Size: Approx. 200 × 85 × 53 mm (L×W×H)
-
Weight: ~0.87–1 kg
Protection & Build
-
Built-in protections include over-voltage, over-current, and short-circuit safeguards
-
Designed for compact desktops (Slimline/ProDesk/S5) – refurbished or new units available
Compatibility
Commonly used in models like:
-
HP Slimline 200/260/270/400/450/455 SFF
-
HP ProDesk 400 G2/G3/G4 SFF
-
S5‑1333 / 1523 / 1537 CN series
(Also backward-compatible with similar HP units like DPS‑180AB‑20 A / PCE019)
Quick Summary Table
| Feature | Specification |
|---|---|
| Power Output | 180 W |
| Efficiency | 80 PLUS Bronze |
| AC Input | 100–240 VAC, 50–60 Hz, 3.6 A |
| Output Rails | +12 V @15 A; +5 V @10 A; +3.3 V @7 A; +5 VSB @1.5 A |
| Connectors | 24‑pin ATX, 4‑pin CPU, SATA, Micro‑SATA |
| Size (L×W×H) | 200 × 85 × 53 mm |
| Weight | ~0.87–1 kg |
| Protections | OVP, OCP, SCP |
For more detailed information
Call..01729525052
www.igadgetbd.com
What is the best price of HP PS-4181-7 ( 124PIN-4PIN ) Power Supply 180W in Bangladesh ?
The latest price of HP PS-4181-7 ( 124PIN-4PIN ) Power Supply 180W in Bangladesh is ৳2,790.00 You can buy the HP PS-4181-7 ( 124PIN-4PIN ) Power Supply 180W at best price from our website.Related products

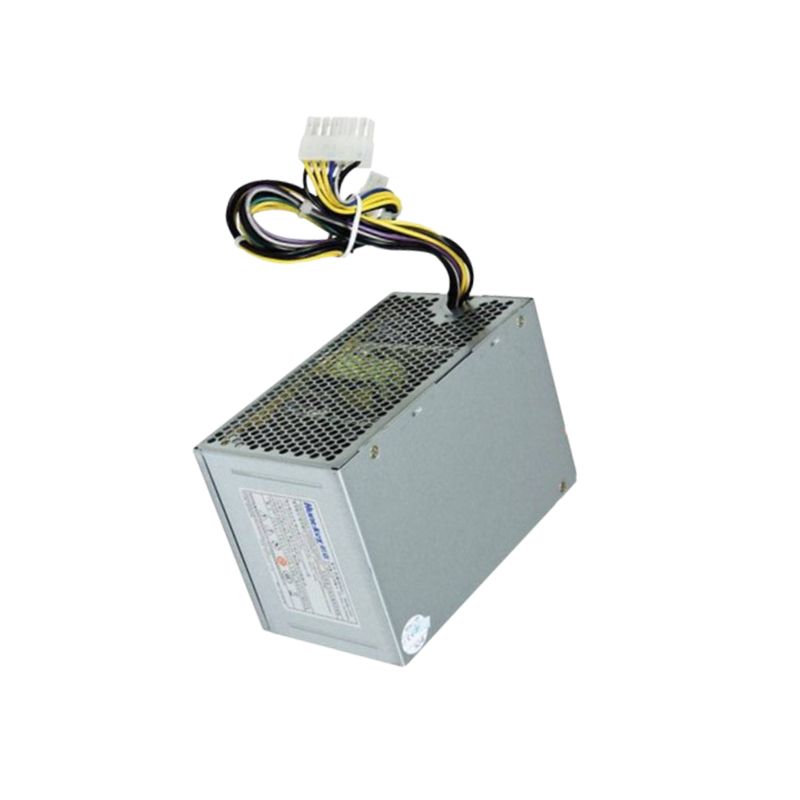

LENOVO ThinkCentre ( 14PIN-4 PIN) H5005 POWER SUPPLY PSU 180W

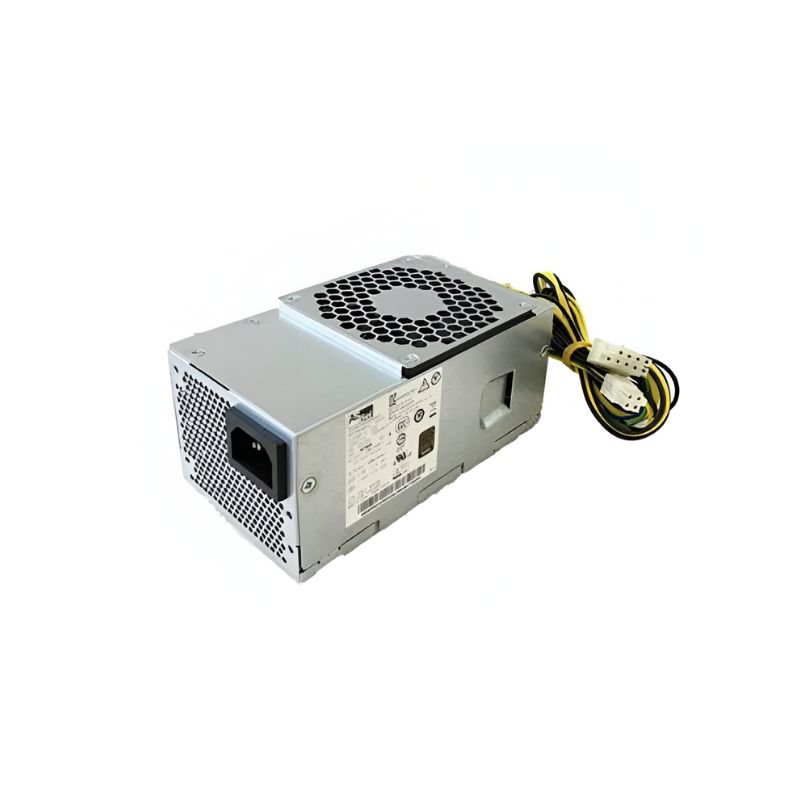

LENOVO ( 10 PIN-4 PIN) HK280-72PP POWER SUPPLY 180W

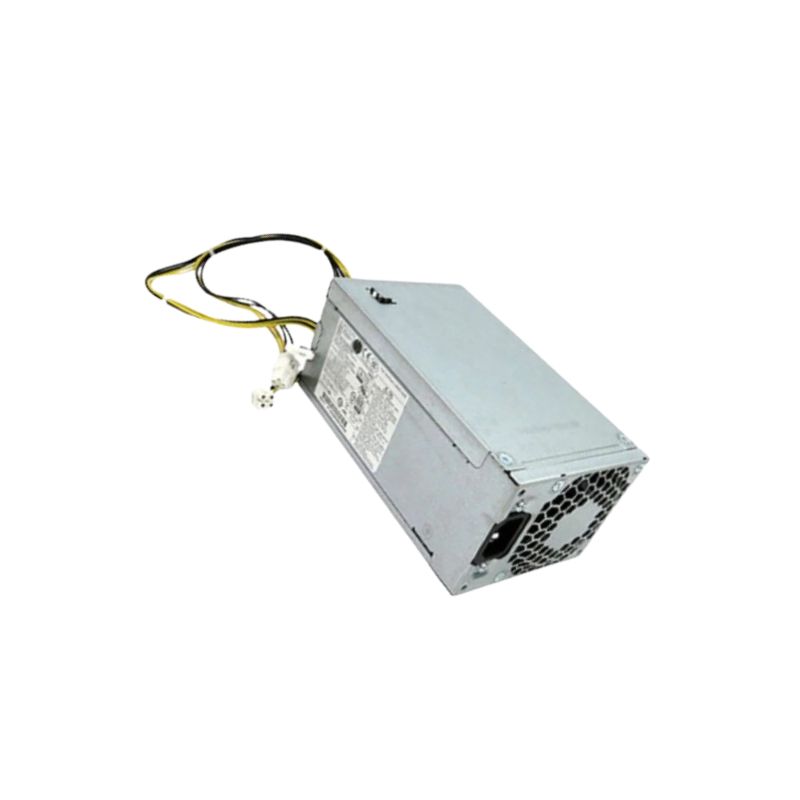

HP G4 Power Supply 180W
